    161r/Min 7.5kw Pipe Beveling Machine For Fittings

    Ask Lasest Price
    Brand Name : Huawei
    Payment Terms : T/T
    Price : Discuss
    Model Number : GIL114
    Certification : CE
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 3-5monthS
    • Product Details
    • Company Profile

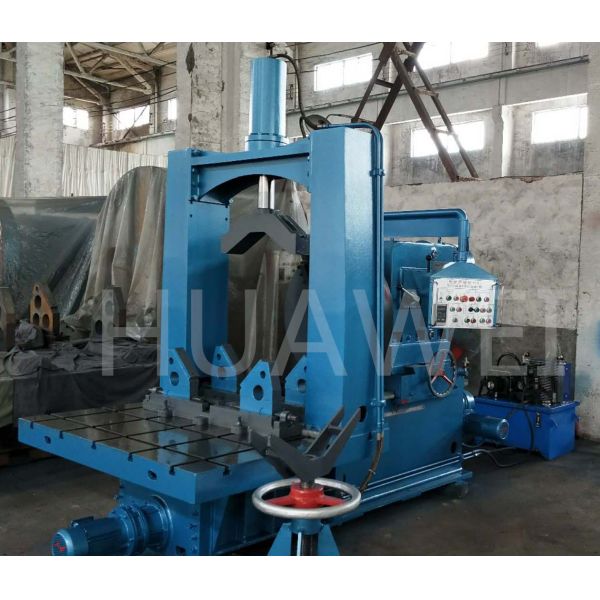

    161r/Min 7.5kw Pipe Beveling Machine For Fittings

    60MM to 3000MM ,blue Pipe Fitting Beveling Machine

    Overview
    Quick Details
    Condition:
    New
    Place of Origin:
    China
    Brand Name:
    Huawei
    Applicable Industries:
    Manufacturing Plant
    After-sales Service Provided:
    Overseas service center available, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
    Type:
    Standard
    Supply Ability
    Supply Ability:
    10 Set/Sets per Month
    Packaging & Delivery
    Packaging Details
    export standard package
    Port
    TIANJIN PORT
    Lead Time :
    Quantity(Sets) 1 - 10 >10
    Est. Time(days) 30 To be negotiated

    Product Description

    Serial

    No.

    Name Parameter value Unit Remark
    1

    Power

    unit

    Moter power Y2-160M-6 7.5 KW Main motor
    Spindle speed 31,59,86,161 R/min four gears
    Tool carrier differential feeding quantity 0,0.25,0.10, Mm/r Three gears
    Tool carrier electrical feeding quantity ±180 Mm/r Inching or three gears
    Moter power Y2-71M2-4 0.37 KW Tool carrier rapid progressing
    2

    Slipway

    organ

    Horizontal regulation quantity ±50 Mm Manual
    Motor power Y2-90L-4 1.5 KW Axial rapid progressing
    Axial rapid feeding quantity ±302 Mm/min Inching
    Axial working feeding quantity ±1.45-14.5 Mm/min Frequency control of motor speed
    Motor power YVP-802-4 0.75 KW Axial progressing
    Longitudinal stroke 400 Mm/min
    3

    Lifting

    organ

    Total velocity ratio 253.57
    The input power 1.1 KW
    The input of revolution 1450 R/min
    The speed of lifting ±57 Mm/r
    Lift 285 Mm
    The bearing capacity 10000 Kg
    4

    Clamp

    platform

    organ

    Working pressure

    4-6 Kpa
    Effective stroke 285 Mm
    Maximum lift 100 KN
    5

    Cutterhead

    organ

    Cutterhead diameter Φ850 Mm
    Angle tool carrier 0-37.5° Differential progressing
    6

    Process

    scope

    Cutting diameter(straight pipe) Φ159-φ800 Mm
    Max. cutting thickness 150 Mm Angle tool carrier
    Groove type MonoV,doubleV U X

    Or decided by tool

    Packaging & Shipping
