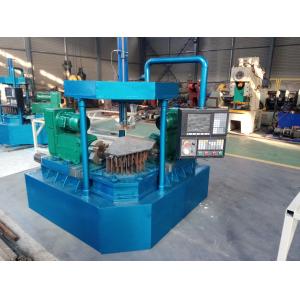

Pipe Fitting Beveling Machine High speed and high precision Good brightness

    Buy cheap Pipe Fitting Beveling Machine High speed and high precision Good brightness from wholesalers

    Buy cheap Pipe Fitting Beveling Machine High speed and high precision Good brightness from wholesalers
    • Buy cheap Pipe Fitting Beveling Machine High speed and high precision Good brightness from wholesalers
    • Buy cheap Pipe Fitting Beveling Machine High speed and high precision Good brightness from wholesalers

    Pipe Fitting Beveling Machine High speed and high precision Good brightness

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : 114
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10-15 SET/ MONTH
    Delivery Time : 20-25 WORK DAYS
    • Product Details
    • Company Profile

    Pipe Fitting Beveling Machine High speed and high precision Good brightness

    steel elbow beveling machine with two heads,high speed and quality

    Model33-114
    Spindle power3.8KW
    Spindle speed450/750
    Servo torque10N/M
    With 8 speed ratio reducer
    Screw stroke300MM
    Screw speed8M/MIN
    Hydraulic power2.2KW
    Cylinder diameter80MM
    Configuration tool3
    Total weight of machine tool3.5T
    Machine size1.8*1.8*2.3M
    Attachment configuration

    Workpiece cursor



    Pipe Fitting Beveling Machine High speed and high precision Good brightnessPipe Fitting Beveling Machine High speed and high precision Good brightness


    2. Company Information:
    Guozhong is manufacturer of pipe fitting and pipe fitting machine such as Cold forming elbow machine, Hot forming elbow machine, Cold forming tee machine, Beveling machine, Shot blasting machine, Marking machine, Sizing machine, Ring rolling machine. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.


    3. Packaging & Delivery
    Pipe Fitting Beveling Machine High speed and high precision Good brightness

    4.Safe operation of automatic double-head chamfering machine:

    The daily operation schedule of automatic chamfering machine and double-end chamfering machine should be prepared and checked before daily work:

    1. Check the environment around the automatic chamfering machine and double-head chamfering machine every day.

    2. Check whether the tools in the tool box are complete.

    3. Check whether the air source, power supply, button switch, indicator light and electric eye induction of the double-end chamfering machine are normal.The brakes are sensitive.

    4. Check whether the oil pump and paraffin oil pump of automatic chamfering machine are working and whether the oil nozzle is injected to ensure normal operation of the equipment.

    5. Check whether the reducing die and flanging die are loose. If so, make adjustments immediately.


    5.Equipment principle of automatic double-head chamfering machine:

    Double-head chamfering machine, with the help of the friction between the rubber wheel and the rotary press wheel to assist the positioning and adjust the friction torque of the workpiece using the grinding wheel chamfering is the main content of the design.

    Main drive mechanism the main drive mechanism is composed of the driving wheel shaft and the inert wheel shaft. The driving wheel shaft and the inert wheel shaft are respectively inlaid with a set of styrene butadiene rubber wheels. The spacing is.

    Hot rolled steel products will have different degrees of bend, in order to prevent stuck between wheel and workpiece by jumping out of iron and reduce friction torque phenomenon appears, when the design will take the initiative to the input end of the shaft is fixed, two axis by grinding the two rubber wheel is fixed, the other two shaft all the rubber wheel can float up and down, move around, to complete the whole process of double-headed chamfering machine work.

    Pipe Fitting Beveling Machine High speed and high precision Good brightness
    6. Contact:
    Darcy Dong

    Email Address: guozhong_darcy@pipefittingsmachine.com
    Whatsapp/ Wechat: 0086 156 3073 1167
