    Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves

    Ask Lasest Price
    Brand Name : junxi
    Price : Can discuss
    Payment Terms : L/C, T/T
    Supply Ability : 1000
    Delivery Time : 15~25
    • Product Details
    • Company Profile

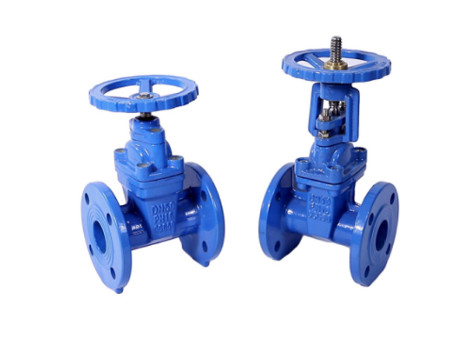

    Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves

    gate valve pn16 flange end ductile iron


    Specification Details

    Design Std:EN 1171

    Size:DN40--DN1000

    Pressure Rating: PN16,PN10

    Seat: NBR,EPDM, VITON,PTFE,NEOPRENE

    Face to Face: EN 558 Series 14(DIN 3202 F4)

    Pressure Testing:DIN EN593/DIN EN12266-1

    Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563

    Flange Ends: DIN EN1092-2/Type B

    Working temperature:-10 to +120℃


    Gate Valve:

    Standard

    DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515

    Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25

    TypeFlanged End , Socked End ,Mechanical Joint, non rising stem / rising stem
    Material

    Body: Ductile iron GGG40/50 or Cast IronGG25

    Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated

    Stem: stainless steel 2Cr13 , SS304,SS316

    Bolt and Nuts : Carbon Steel with zinc plated or SS304,316

    CoatingInternal and external with fusion bonded epoxy coating min250μm

    Design Feature

    1: Full bore or reduced bore
    2: Two-Piece downstream sealing
    3: Fire safe design(API 607)
    4: Blowout-proof system
    5: Anti-static design
    6: Fugitive emission testing(optional)


    Epdm Seat Pn16 Flange End Gate Valve Ductile Iron Industrial Control Valves
